KP35026VGA

Low cost, fast dynamic response off-line PWM control power switch

The KP35026VGA is a high performance and low cost PWM controlled power switch for 3.3V powered applications with simple peripheral circuits and few components. At the same time, the IC built-in high voltage MOSFETs can improve the surge tolerance of the system.

Unlike traditional PWM controllers, KP35026VGA has no fixed clock drive MOSFETs, and the switching frequency of the system can be adjusted automatically with the change of load. The chip adopts multi-mode PWM control technology and dynamic response optimization circuit, which effectively improves the dynamic response ability, optimizes the linear adjustment rate and the load adjustment rate, and significantly reduces the audible noise in the system. In addition, the internal peak current detection threshold can be automatically adjusted according to the actual load condition, which can effectively reduce the standby power consumption in no-load condition.

The KP35026VGA integrates complete protection features with self-recovery: VDD undervoltage protection, output overvoltage protection, cycle by cycle current limit, abnormal overcurrent protection, overheat protection and overload protection.

Main feature

• Fixed output 3.3V

• Fast dynamic response to meet the requirements of WIFI power supply

• No load standby power consumption less than 20mW

• Integrated continuous current diode

• Integrated 500V high voltage MOSFET and high voltage start circuit

• Up to 45kHz switching frequency

• Multi-mode control, no sound work

• Supports step-down and step-down topology

• Good linear adjustment rate and load adjustment rate

• Integrated soft start circuit

• Internal protection functions:

• Overload Protection (OLP)

• Cycle Current Limit (OCP)

• Abnormal Overcurrent Protection (AOCP)

• Output Overvoltage protection (OVP)

• Over temperature Protection (OTP)

• Encapsulation type SOP-4

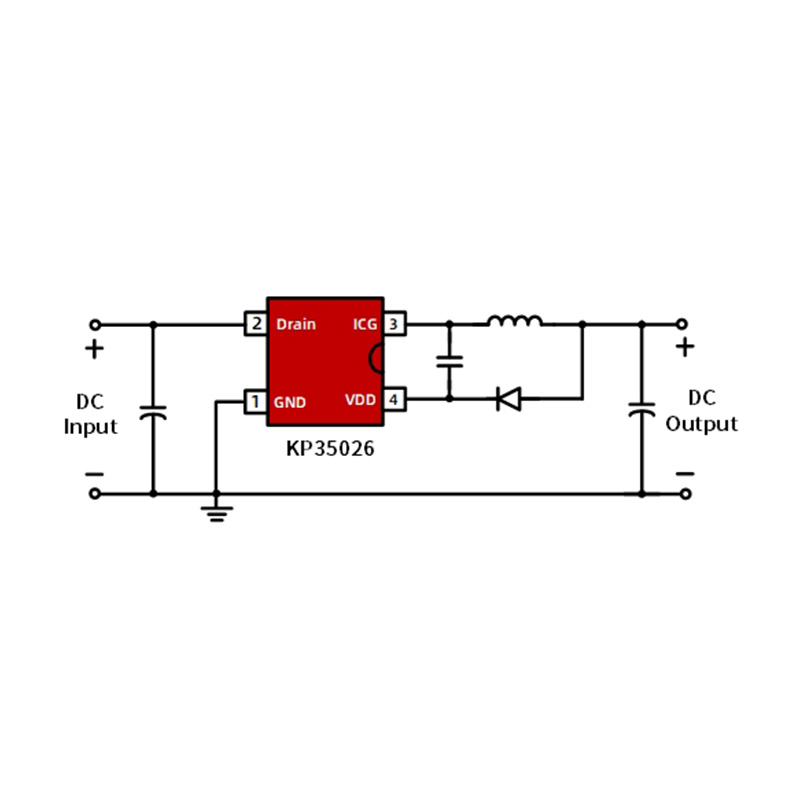

Typical application

• Smart lighting/WIFI power supply
