AS8301

AS8301 is a small power isolated DCDC power chip

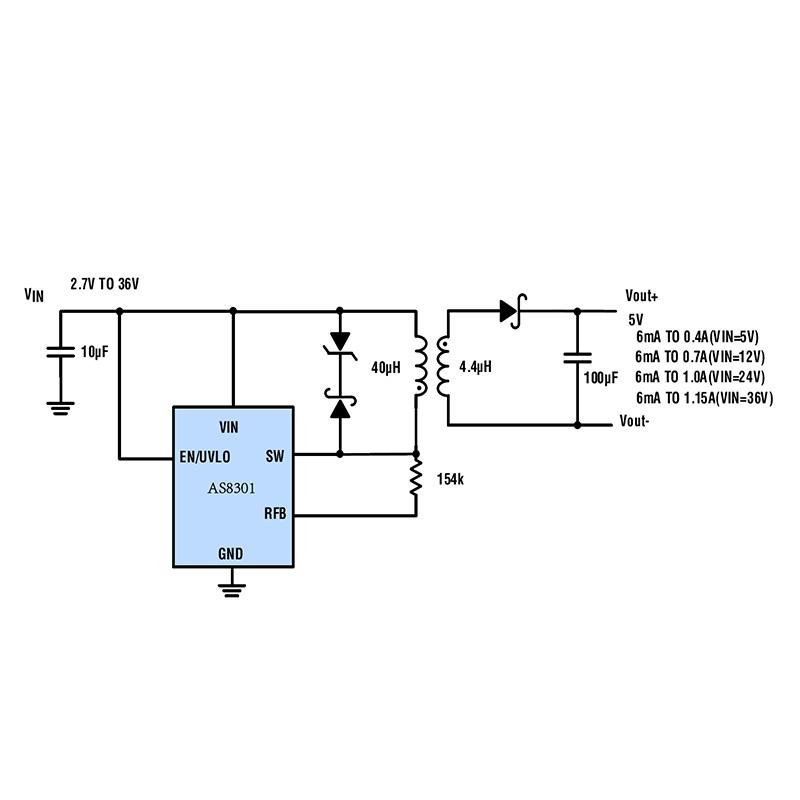

The AS8301 is a micropower isolated flyback switching power supply chip. No third party windings and optical couplings are required, and the output voltage is controlled by the primary voltage feedback. The output voltage is set by an external resistor, and external devices are reduced by a built-in compensation circuit and soft start. Low ripple burst mode ensures high system efficiency by minimizing output ripple.

The SOT23-5 package integrates the 1.2A/65V power DMOS tube as well as all the high voltage circuits and logic management circuits. The AS8301 has an input voltage range of 2.7V to 42V and can transmit 6W power to the isolated end. Built-in circuit, boundary mode and low ripple burst mode make the chip easy to use.

Product features:

• Input voltage range from 2.7V to 42V

• Built-in 1.2A/65V power MOS tube

• Low static current 140uA

• Overloading works in border mode

• Light load operation in low ripple burst mode

• The output voltage is adjustable

• dual winding no optocoupler

• Built-in compensation and soft boot

• Output short circuit protection

• conforms to AEC-Q100 vehicle standard

• Package: SOT23-5

Applications:

• Industrial, medical

• New energy

• Isolate auxiliary power supply

• Power module
